72V15000W Rear Wheel Electric Bicycle E-bike MTB Conversion kit 200Amp Sabvoton Controller Tektro Hydraulic Disc Brake

72V15000W Rear Wheel Electric Bicycle E-bike MTB Conversion kit 200Amp Sabvoton Controller Tektro Hydraulic Disc Brake

FREE SHIPPING TO US, UK, DE, EU, AU

Regular price $3,298.00 USD
Regular price Sale price $3,298.00 USD
Sale Sold out
Shipping calculated at checkout.

Get it between -

General Info

Voltage: 72V

Motor Power: 15000W

Number of Speed: 1

Maximum Speed: 130-150km/h or 82-95mph

Motor Type: BLDC Brushless Rear Hub Motor

Tire Type: Off-Road Tire

Brake Type: Tektro Hydraulic Disc Brake

Color: Black

Product Description

Feature
1, Brushless 72V15000W DC hub motor with double hall sensor (150mm dropout); Top Speed : About 130-150km/h (82-95mile/h); Big torque: Rated torque 100N./M, Max torque 150 N./m. Very powerful for climbing hills.

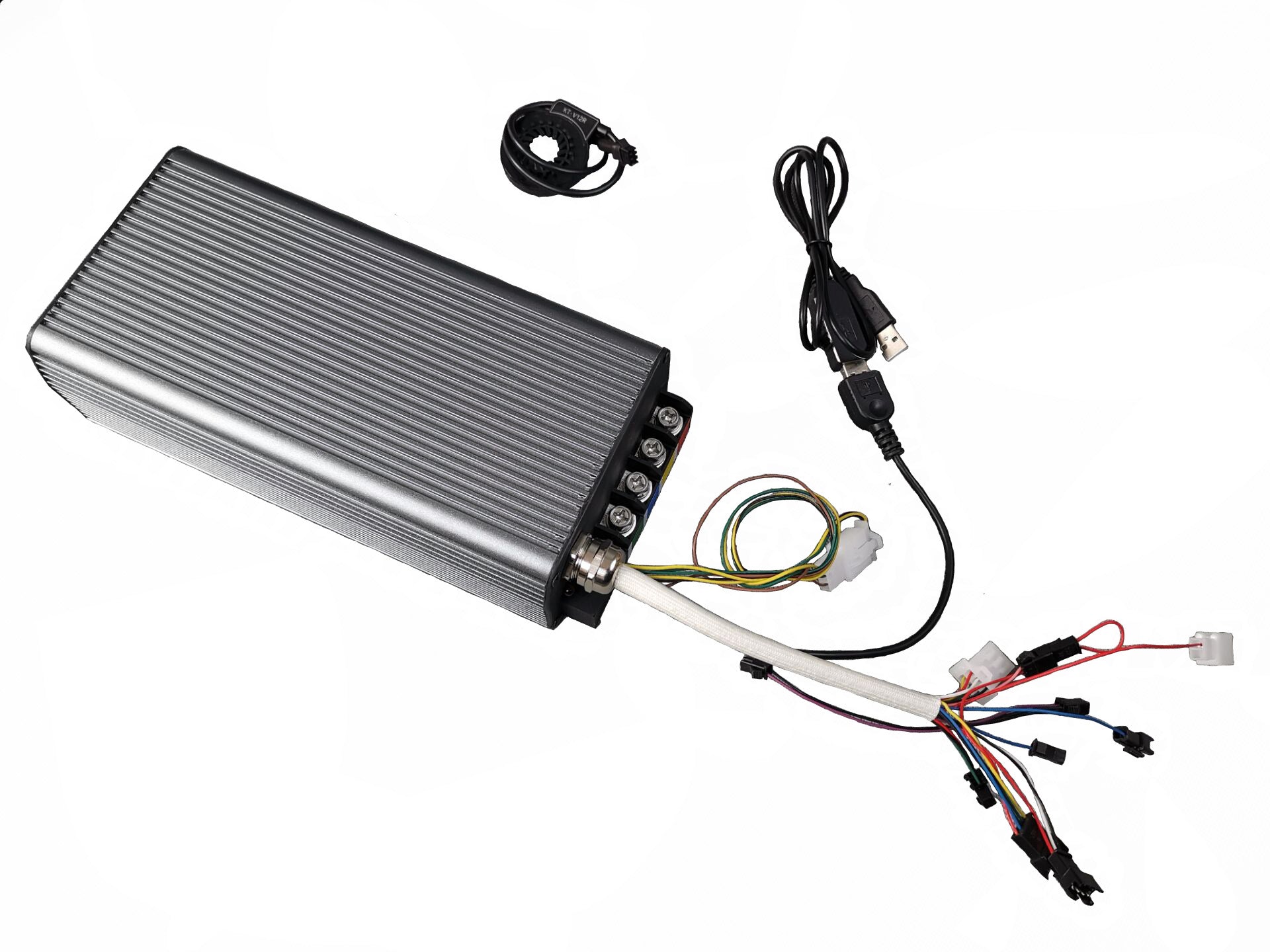

2, The newest design Sabvoton brand programmable sine-wave controller 200Amp, the controller can be programmed by the PC and bluetooth(compatible with Android and ISO system).

3, Controller function: Cruiser function; E-braking function; Regenerative Braking function; Voltage DC current; E-brake current; Flux weakening switch on/off ; Regenerative current; Temperature protection setting for motor and controller, etc.,

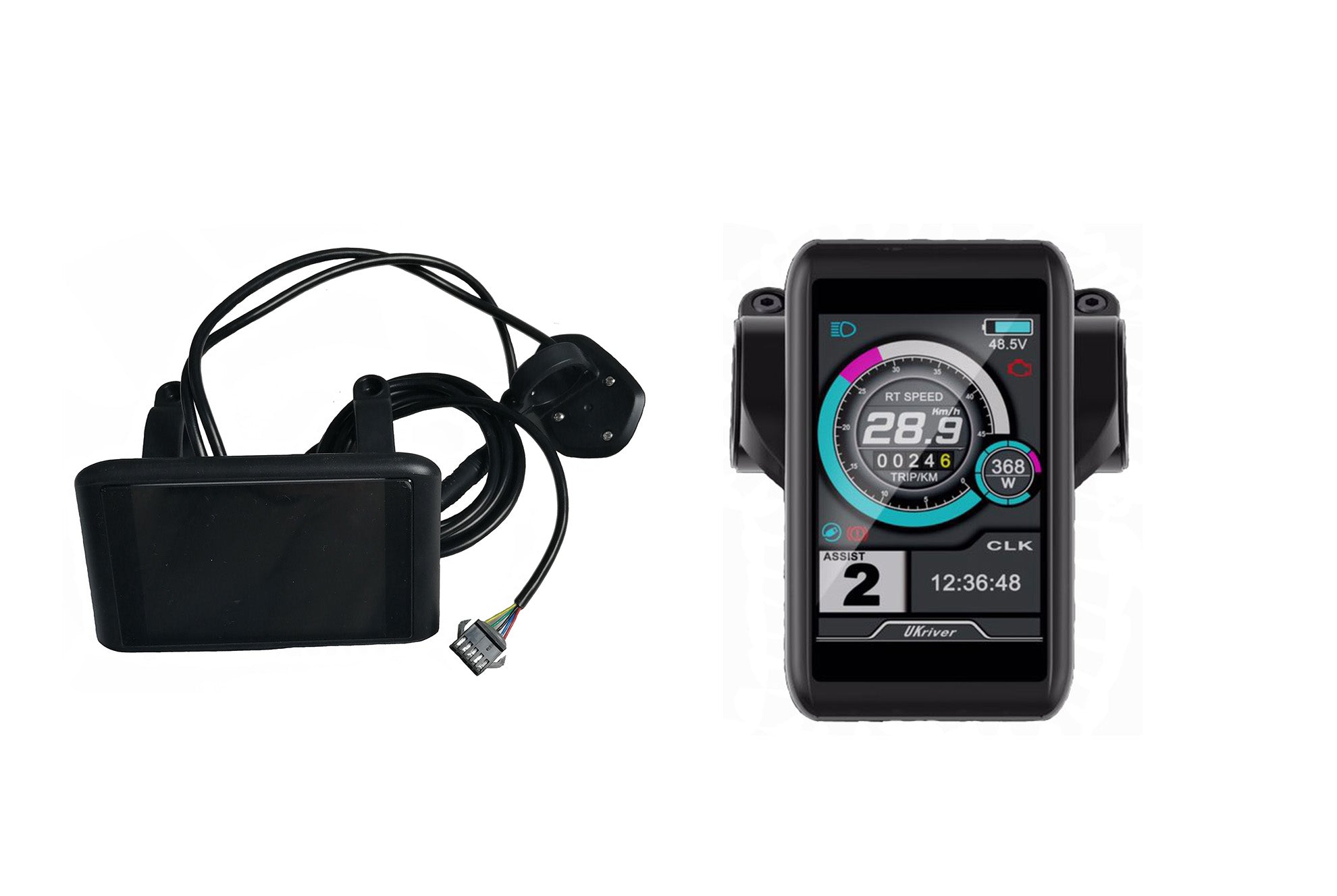

4, TFT display with 3.5" high contrast color screen shows battery power level, time, speed, mileage, gear, input power. Components error checking and report.

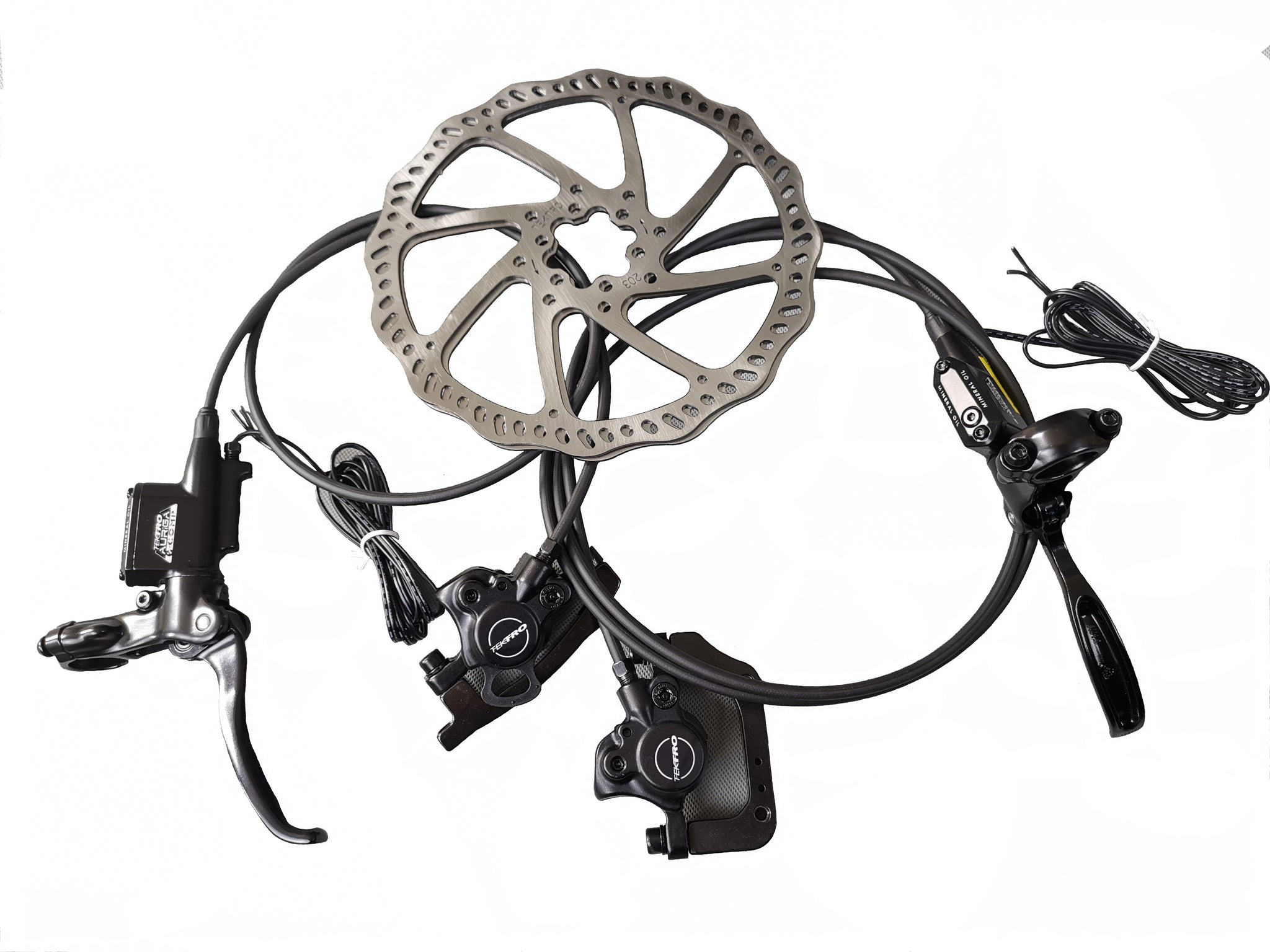

5, Tektro HE-E500 hydraulic disc brake with rear and front Plate diameter 203mm


Specification
1, 72V15000W brushless gearless hub motor;
2, Magnet size: 42mm, dropout size:150mm;
3, Motorcycle rim, 55mm rim width;
4, 200Amp programmable sine-wave controller, Protect and prolong the life of the battery;
5, Brake lever, shut off the motor when you brake stainless steel disc brake;
6, Suggestion about the battery: 72V56AH-72V70AH battery

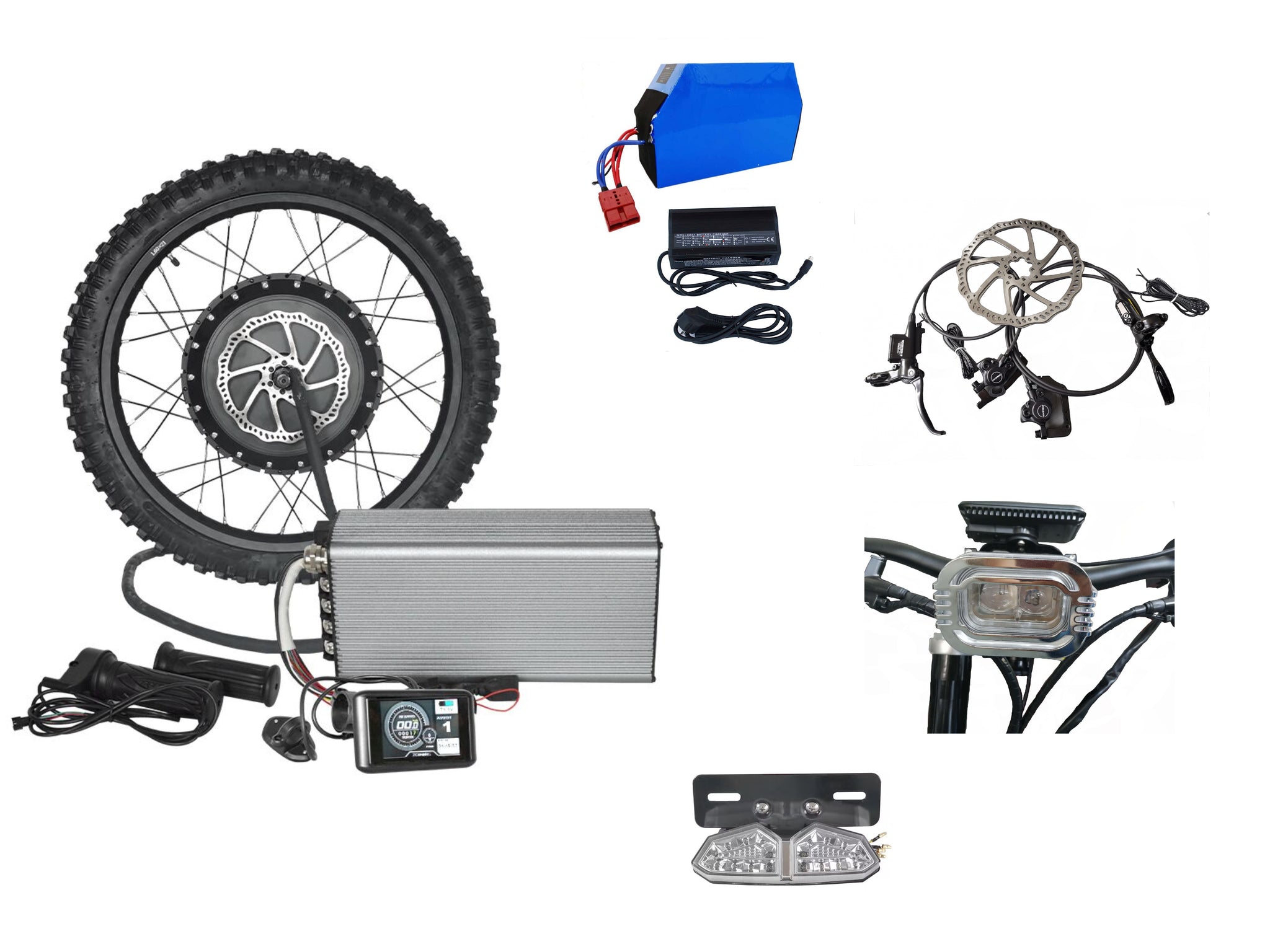

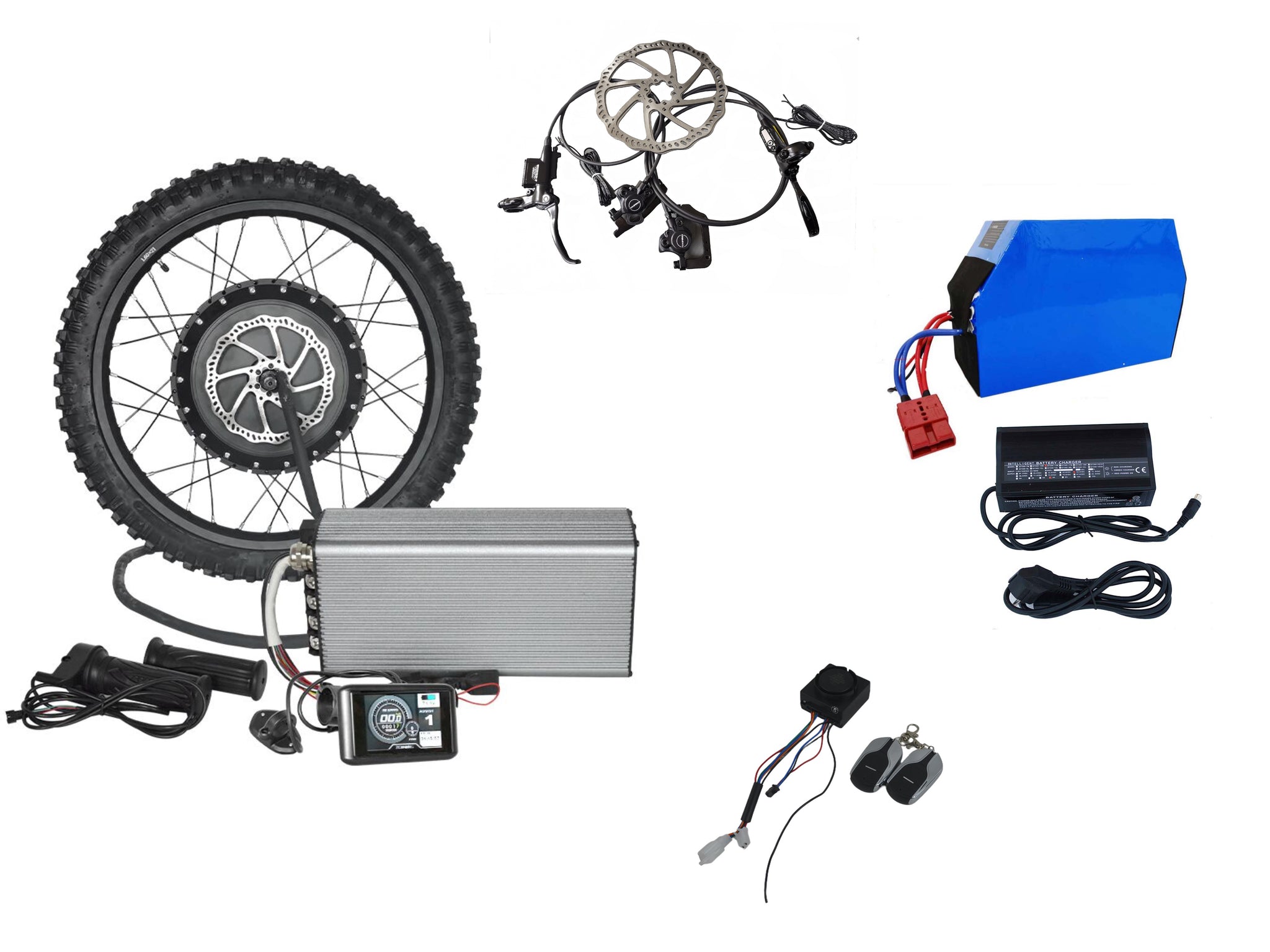

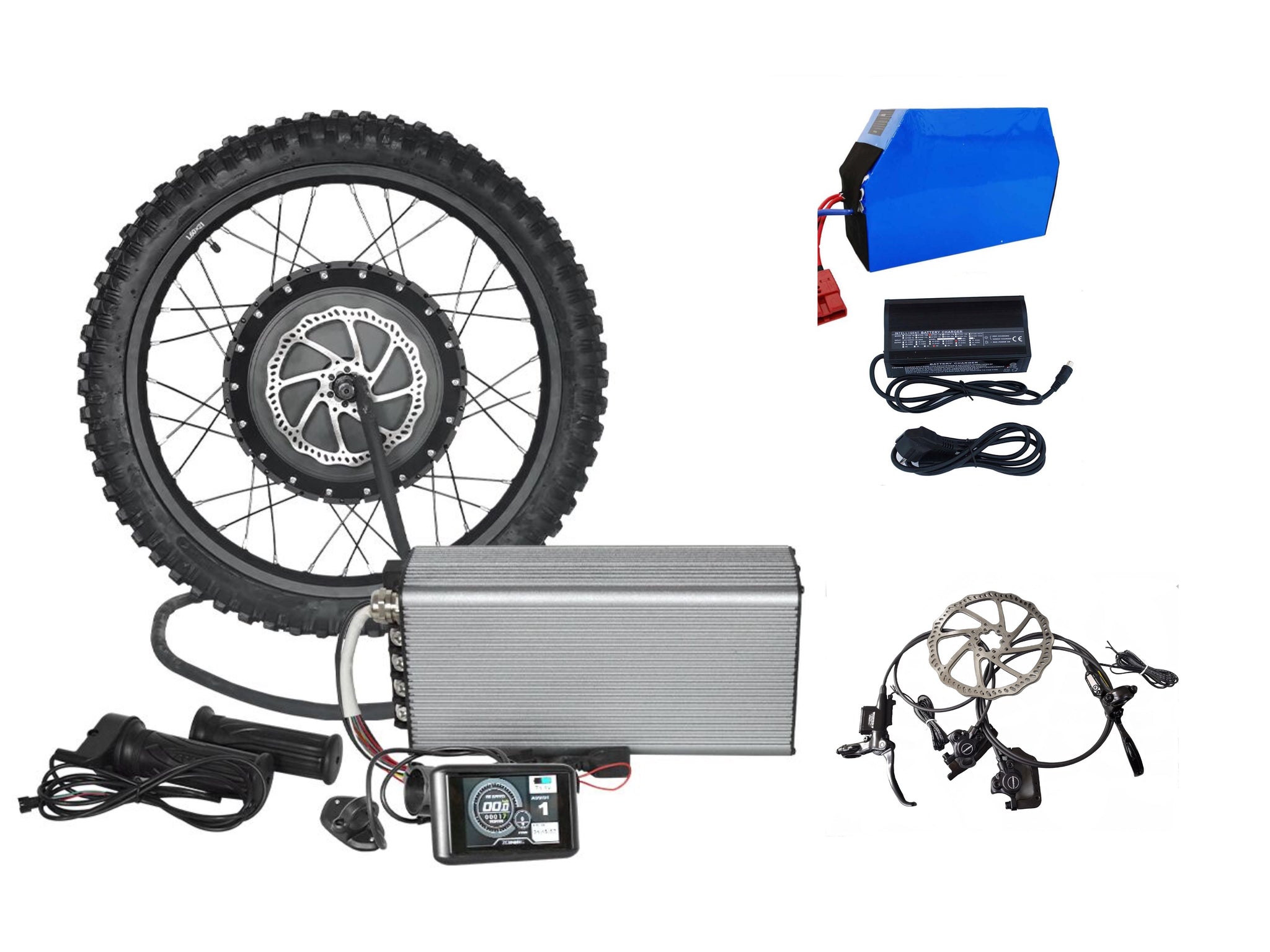

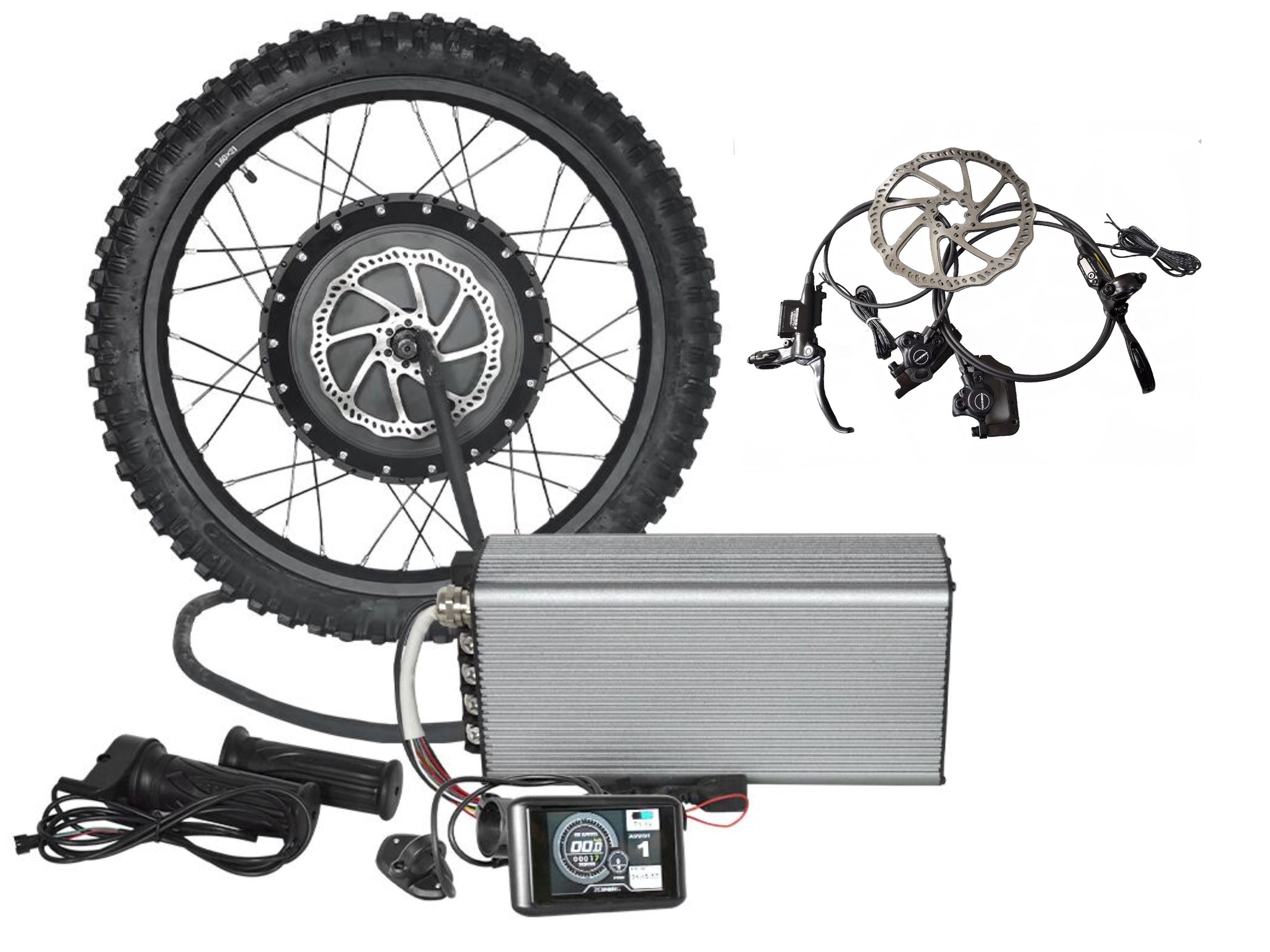

Components Included

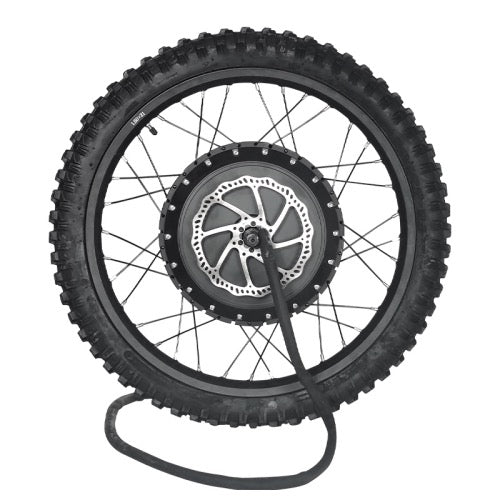

1 x Brushless 72V15000w DC hub motor with double hall sensor (150mm dropout, suitable for bicycle disc brake and single 16tooth freewheel for bicycle chain).
1 x 19" or 21" Motorcycle rear wheel, Rim width: 55mm, 10g spoke
1 x Wuxing Brand Twist or Thumb Throttle.
1 x 16T single speed gear
1 x TFT display with 3.5" high contrast color screen
1 x USB Connector which is connected with PC
1 x Bluetooth
1 set of Tektro HD-E500 Hydraulic Brake rear & front Plate Diameter 203mm
1 x key to turn on ebike or TFT display

Shipping & Delivery

Free Shipping to US, UK & Germany. For some items shipping from China, it is free shipping to EU countries and Australia too. For more Details, please check the shipping policy below.

We normally ship it from China, US, UK or Germany warehouse by FEDEX, UPS, DPD, DHL, GLS, POST or other international express.

1, Ship it from US, UK and Germany warehouse

If we have stock in US, UK or Germany warehouse, we ship it from US warehouse to US buyers, from UK warehouse to UK buyers, from Germany warehouse to Europe Union buyers. The delivery normally takes about 1-5 business days. The shipping cost to these three countries (US, UK, Germany) is free. To the other Europe Union countries, you can check the shipping cost at checkout. No import tax from Germany to Europe Union countries.

 Shipping from US, UK and Germany Warehouse
 Destination

Shipping
Fee

Delivery
(Business
Days)

Import
Tax

US, UK, Germany Free 1-5 None
EU, please check EU
countries list below

calculated

at checkout

3-5 None



EU countries list: Austria, Belgium, Bulgaria, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain and Sweden



2, Ship it from China

When we don't have stock in the relevant market warehouse, we ship it from China. We need some days to prepare your order especially the stealth bomber ebike. And the delivery range is about from 10 to 45 business days now due to the Pandemic. Please check the shipping fee, handling time, delivery and import tax details in the following tables.

 Ship from China to US, UK, Australia, Germany, EU and some Asia countries, please check the EU and Asia countries lists below
 Package

Shipping

Fee

Delivery

(Business

Days)

Import

Tax

small package

(1-7.9kgs)

Free 7-10

Yes, if you

are asked

to pay

8kgs<package

<80kgs

Free 25-35 none

Stealth Bomber

Ebike

Free 30-45 none
Battery Free 15-20 none



EU countries list: Austria, Belgium, Bulgaria, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain and Sweden

Some Asia countries list: Japan, Malaysia, Philippines, South Korea, Thailand, Vietnam



 Shipping from China to Canada
 package

Shipping

Fee

Delivery

(Business

Days)

Import

Tax

small package

(1-5.5kgs)

calculated

at checkout

7-10

Yes, if you are asked to pay

6kgs<package

<80kgs

calculated at checkout 25-35 none



Battery
calculated at checkout 35-45 none

 Stealth Bomber

Ebike

We cannot ship this bike to Canada, but the DIY parts package for stealth bomber ebike can be shipped to Canada, the shipping rate and delivery are same to 6kgs<package<80kgs



 Shipping from China to Switzerland, Norway and New Zealand (We cannot ship Stealth Bomber Ebike to this destination, but the DIY parts package for stealth bomber Ebike can be shipped to this three countries. The shipping rate and delivery are same to package which is over 30kgs
 Package

Shipping
Fee

Delivery
(Business
Days)

Import
Tax

package
(1-30kgs)

calculated
at checkout
7-10 yes, if you are asked to pay
package>30kgs,
normally the DIY
parts package for stealth bomber Ebike
calculated
at checkout
10-15 yes, if you are asked to pay







Returns & Warranty Policy

Free your shopping from worries!

30-Day Money-Back Guarantee for Any Reason

Undamaged and unused product may be returned for a full refund for any reason within 30-days after receiving your items. Once the returned items arrives back in theebikemotorkit's warehouse for inspection, the refund process will be begin.

  • Returns must include all accessories;
  • Returned items must be in the same condition that you received it, unworn, unused, undamaged, and in its original packaging. You'll also need the receipt or proof of purchase;
  • For non-quality related return, the buyer is responsible for the return shipping cost;
  • For quality related return, theebikemotorkit will bear the return shipping cost;
  • We don't accept Used products return except it is the product problem or extremely product defects.

Warranty Claims for Quality-Related Issues

  • We have 1-year standard warranty for all batteries and motors(Including the batteries and motor in the Ebike). For controller, LCD or TFT display, it is 6-months warranty. The warranty does not cover the easy wore-out parts (for example throttle, brake lever, tire, cable, headlight, bicycle seat).
  • If you have a quality issue with the product, please contact us at sannykung@gmail.com to help diagnose the problem. If a product does not meet our high quality standard, we will issue you a replacement component or fix your original at no additional cost. Replacement components will only be sent after we have received your returned component or finished an inspection to determine the cause of the problems by product video.
  • Do-It-Yourself modifications, normal wear, and damaged due to gross negligence or abuse are not covered by the warranty.
  • For light color variation, it is not considered quality problem.

How to Return an Item

  • To start a return, you can contact us at sannykung@gmail.com. If your return is accepted and meet the free shipping return requirement, we’ll send you a return shipping label, as well as instructions on how and where to send your package.
  • For the return which the buyer need to pay the return shipping cost, please contact us by email to get the return address. Then let us know the tracking number after you ship the items.
  • Your items must be in the original packaging. Or the refund and replacement would not be issued.  Items sent back to us without first requesting a return will not be accepted.

Return Shipping Cost

Please read carefully the condition below to see who need to pay the return shipping cost. If the conditions are not met for return or warranty, theebikemotorkit reserves the right to the exchange or refund.

Warranty Period

Product Condition

Return

Exchange

Shipping Fee

<30 Days

(Unopened and Unused) Brand New

×

borne by the customer

(Opened and Unused) Non-Defective Product

×

borne by the customer

(Opened and Used) Defective Product

(provide product video)

×

borne by the seller

>30 Days

Non-Defective Product

×

×

/

3 Months

Defective Product (provide product video)

×

borne by the seller

6 Months

Defective Product (provide product video)

×

borne by the seller

12 Months

Defective Product (provide product video) This does not apply to Controller and LCD, TFT display

×

borne by the seller




Please note: To avoid malicious returns and save our labor costs and time. If the customer claimed the product defective and request return. Please provide product videos to us. At the same time, we will detect the cause of the failure after the product is returned to the warehouse. If it is man-made damage or return caused by improper use. We will charge consumers a return fee of 10%~20%, and the return shipping fee is borne by the consumer.

Refund

  • Please send us a notification after you ship the item out and provide a tracking number. After we receive the item you returned and check out that the item is in good condition, we will replace or refund you. This will be issued in 5-7 business days.
  • If you haven’t received a refund yet, first check your bank account again.Then contact your credit card company, it may take some time before your refund is officially posted. Next, contact your bank. There is often some processing time before a refund is posted. If you’ve done all of this and you still have not received your refund, please contact us at sannykung@gmail.com.

How to measure the wheel size and dropout of A bike

How to Measure a Bike Tire (How to Measure a Bicycle Tire)

In the bicycle field, the wheel size is the size of the bike wheel after you install the tire. So when you get the tire size, you get the bike wheel size.
If you have a bike tire on your wheel, you can generally find required measurement information on the tire wall (side of tire – see picture below).
Tire walls usually display the size as the picture below.
If you can’t find the sizing on the wall of your tire, here we show you the methods to get your bike wheel size.

The Standard Method (Easiest and Fastest Ways to Find Bike Tire Size)

The standard method is to measures the tire width and tire diameter in inches.

How to Measure Bike Wheel Size with the Standard Method

  1. Put your bicycle on its kickstand or against a wall so that it’s stable.
  2. Place the bottom of the tape at the lowest point of the tire (on the ground) and measure in a straight line to the centre of the bike wheel to find your wheel radius (as shown in the image above). Multiply your wheel's radius by two, then it is the wheel's diameter. it is the wheel size.
  3. Measure the tire's width by placing the type across the top of it like the picture below. the number you got is the tire width. Be sure to list the diameter first, followed by the tire width.
  4. Bike wheel diameters are rounded to the nearest half-inch, so if your measurements are just over or under, round up or down to the nearest size.

How To Measure a Bike Wheel (Rim) for Tire Size

If you do not have your bike’s tire to hand, you can determine the tire size by measuring your bike’s rim width in millimetres as well.
Based on the average tire and wheel combinations currently on the market, the following charts illustrate the coinciding tire size and rim length.
Many rims will display their size somewhere, but some rims may be missing this measurement.
If you cant find measurement on your wheel’s rim, follow the easy steps below that will help you determine the appropriate tire sizes your rim can handle.
  1. With no tire on your bike wheel, position the wheel vertically and hold it steady.
  2. Take a measuring tape and press it against the inside of the rim, where the tire bead would normally sit.
  3. Measure the internal distance from one side of the rim to the other (as shown in the image above).
  4. Take this width and apply it to the correct table below.

Road Bike Rim Width to Tire Size Chart

Mountain Bike Rim Width to Tire Size Chart
Measure of Wheel
20" -- outer tire: 495mm dia.; rim: 410mm dia.;
24" -- outer tire: 600mm dia.; rim: 517mm dia.
26" -- outer tire: 650mm dia.; rim: 573mm dia.;
700C -- outer tire: 690mm dia.; rim: 635mm dia.
28" -- outer tire: 710mm dia.; rim: 650mm dia.

How to measure the dropout of your bike

The dropout of your bike is important, it can decides if the electric bike kit can fit your bike or not. So before your purchase of an ebike kit, please measure the dropout of your bike first.

Bike dropout is literally called frame spacing, is the inside distance between the two fork ends (drop outs) where the wheel fits in. it is very easy to be measure just by removing the wheel and holding a ruler to measure the place where the wheel came out. please check the following picture.
