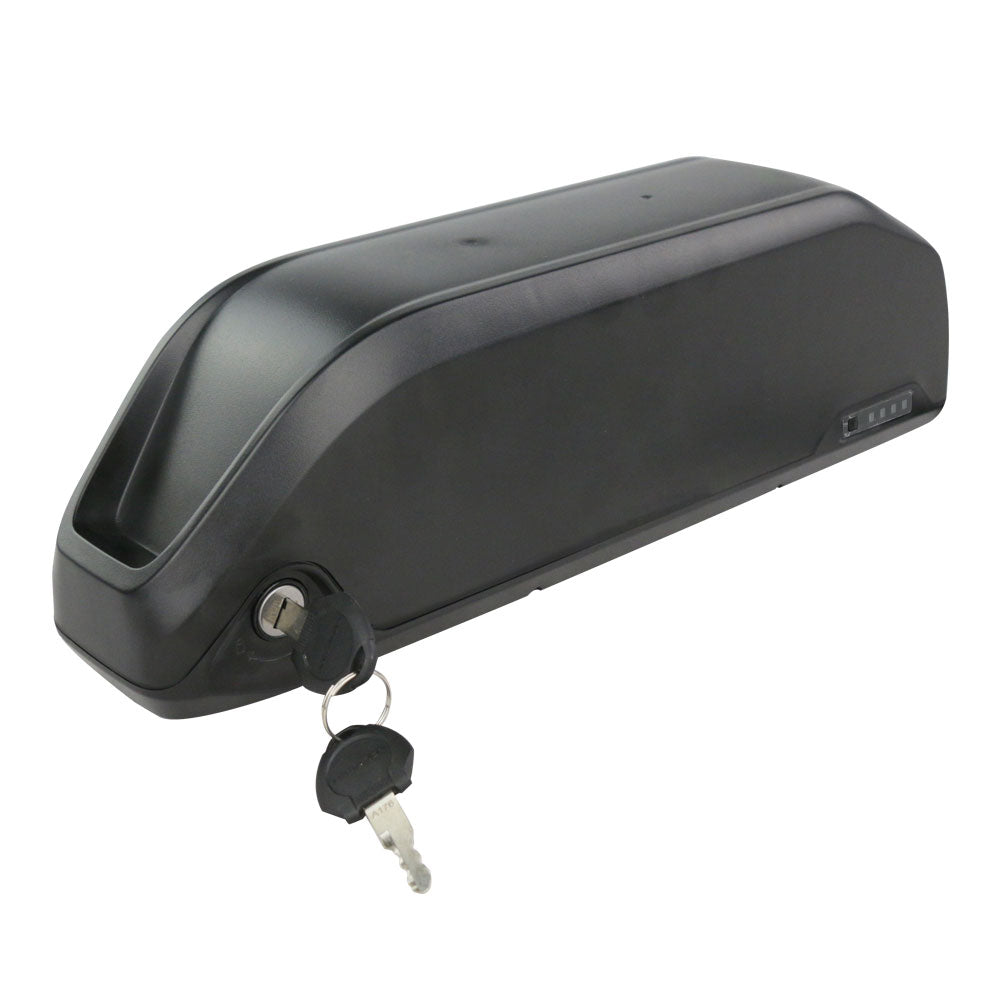

36V 48V 52V 60V 13Ah-24Ah Downtube Lithium Ion E-bike battery for 1000W-1500W Hub Motor

36V 48V 52V 60V 13Ah-24Ah Downtube Lithium Ion E-bike battery for 1000W-1500W Hub Motor

FREE SHIPPING TO US AND SHIP FROM US, UK, DE, CA, AU

Regular price $248.00 USD
Regular price Sale price $248.00 USD
Sale Sold out
Shipping calculated at checkout.

Get it between -

General Info

Voltage: 48v 36v 52v 60v

Battery Capacity: 13A-25AH

Battery Type: Lithium Ion (Li-Ion), Down Tube

Charging Time: 5-9 hours

Product Description

Feature of the battery

1, Battery cell: made of domestic Samsung 35E, Samsung 50E, LG3200mAh, LG4800mAh Li-on cell and domestic Li-on battery cell

2, Motor work with: battery with 30A BMS can run1000W motor, battery with 40A BMS can run 1500w motor, battery with 50A BMS can run 2000W motor

3, Size-48V13AH, 36V24.5AH, 48V17.5AH,52V17AH (370MM x 110mmx90mm); 48V19.2AH LG4800(368mm x 95mm x 125mm); 48V24AH LG4800, 52V24AH LG4800, 48V25AH Samsung 50E, 52V25AH Samsung 50E, 60V19.2AH LG4800: 368MMX150MMX95MM

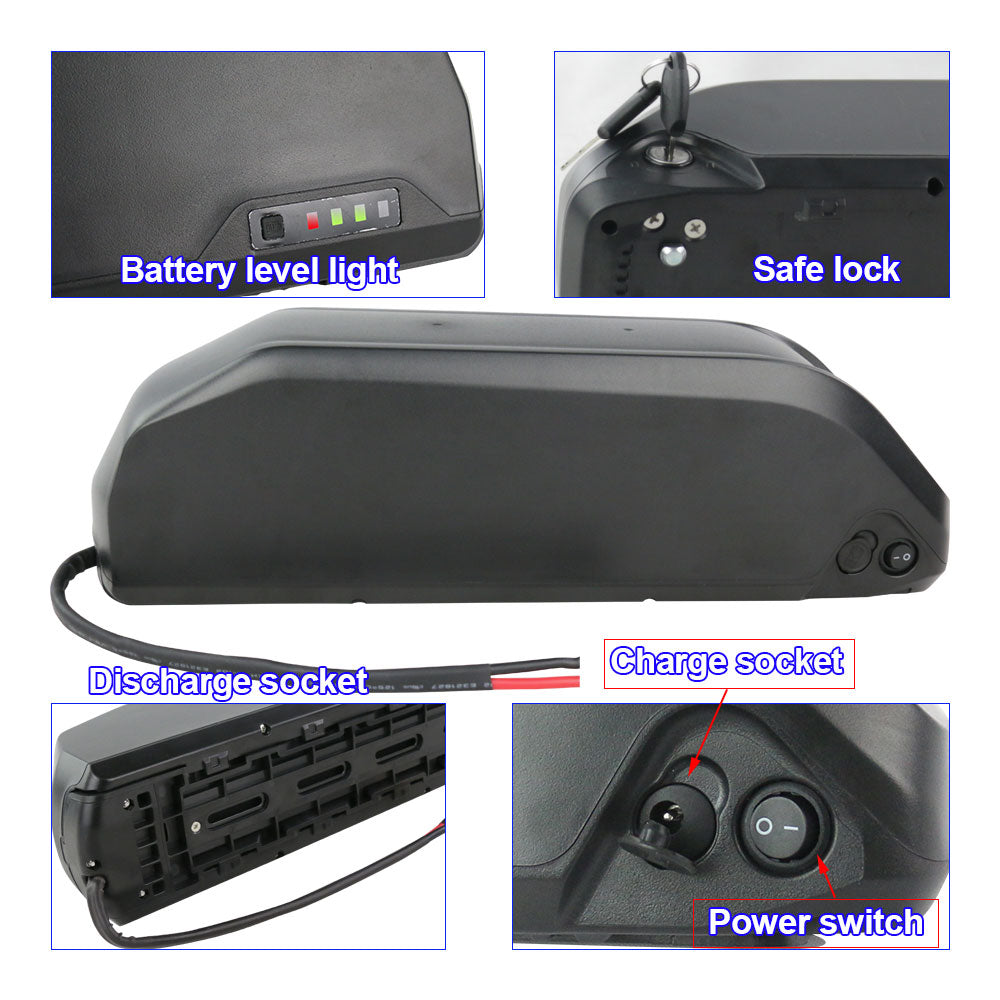

4, The battery has an LED display to show the usage power in time. And it comes with a matching charger, the indicator light of the charger can tell the status of battery charging. When then indicator light turns into green, it indicates the battery is fully charged and when it is in red, it is charing.

5. the battery comes with a safety locks and switches. It can be firmly fixed to the bicycle and prevent from being lost.

6, 1000-2000 life cycles. UPP has implemented a strict high quality management policy: every lithium battery has passed the QC appearance and function test before shipment. The ebike battery charge cycle exceeds 1000 times and Samsung and Panasonic battery cell can exceeds 1500-2000 times, life expectancy of up to 5 years.

7, Safety & Convenient: Hight quality electric cells and built-in a 30A 40A 50A BMS protective plate, prevent over charge, over discharge, over current and short circuit and ensure the long life expectancy.


Specification
1, Nominal Capacity(AH): 13AH/17AH/17.5AH/19.2AH/ 24.5AH/24AH/25ah
2, Nominal voltage(V): 36V,48V, 52V,60V
3, Battery internal resistance(mΩ ): 105
4, Cell Combination: 7x10/5x13/5x13/5x14/6x14/5x13/5x14/4x17
5, End-off voltage(V): 12
6, Charging cut-off voltage(V): 42/54.6/ 58.8/71.2/
7, Rated charging current Amperage of BMS (A): 10
8, Maximum Instantaneous discharging current Amperage of BMS (A): 60, 80, 100
9, Maximum continuous discharging current Amperage of BMS(A): 30, 40, 50
10, Battery Cell: Samsung 35e, LG3200mAh, LG4800mAh, Samsung 50E Li-on cell
11, 5C discharge.
12, Max discharging Current Amperage(A): 10
13, Charging and discharging time: more than 1000 times
14, Charging Type(CC-CV): cc/cv
15, Cut-off charging voltage(V):42, 54.6, 58.8, 71.2
16, Charge temperature range ssd: 0-50℃
17, Discharge temperature range: -20–50℃

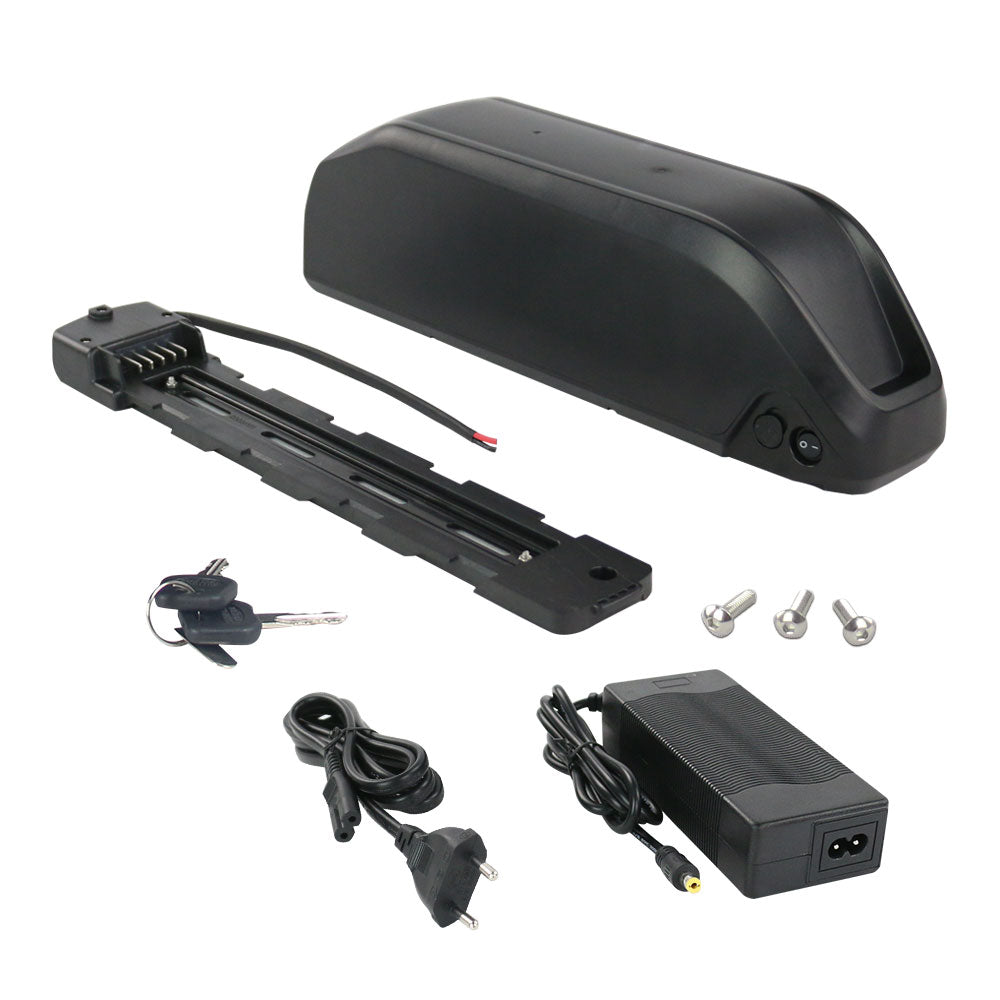

Components Included

1 x Battery
1 x Charger

Shipping Policy

With stock in US, UK, Germany, provide fast delivery. For the delivery, please check the shipping policy below!

We normally ship it from China, US, UK or Germany warehouse by FEDEX, UPS, DPD, DHL, GLS, POST or other international express.

1, Ship it from US, UK and Germany warehouse

If we have stock in US, UK or Germany warehouse, we ship it from US warehouse to US buyers, from UK warehouse to UK buyers, from Germany warehouse to Europe Union buyers. The delivery normally takes about 1-5 business days. The shipping cost to these three countries (US, UK, Germany) is free. To the other Europe Union countries, you can check the shipping cost at checkout. No import tax from Germany to Europe Union countries.

 Shipping from US, UK and Germany Warehouse
 Destination

Shipping
Fee

Delivery
(Business
Days)

Import
Tax

US, UK, Germany Free 1-5 None
EU, please check EU
countries list below

calculated

at checkout

3-5 None



EU countries list: Austria, Belgium, Bulgaria, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain and Sweden



2, Ship it from China

When we don't have stock in the relevant market warehouse, we ship it from China. We need some days to prepare your order especially the stealth bomber ebike. And the delivery range is about from 10 to 45 business days now due to the Pandemic. Please check the shipping fee, handling time, delivery and import tax details in the following tables.

 Ship from China to US, UK, Australia, Germany, EU and some Asia countries, please check the EU and Asia countries lists below
 Package

Shipping

Fee

Delivery

(Business

Days)

Import

Tax

small package

(1-7.9kgs)

Free 7-10

Yes, if you

are asked

to pay

8kgs<package

<80kgs

Free 25-35 none

Stealth Bomber

Ebike

Free 30-45 none
Battery Free 15-20 none



EU countries list: Austria, Belgium, Bulgaria, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain and Sweden

Some Asia countries list: Japan, Malaysia, Philippines, South Korea, Thailand, Vietnam



 Shipping from China to Canada
 package

Shipping

Fee

Delivery

(Business

Days)

Import

Tax

small package

(1-5.5kgs)

calculated

at checkout

7-10

Yes, if you are asked to pay

6kgs<package

<80kgs

calculated at checkout 25-35 none



Battery
calculated at checkout 35-45 none

 Stealth Bomber

Ebike

We cannot ship this bike to Canada, but the DIY parts package for stealth bomber ebike can be shipped to Canada, the shipping rate and delivery are same to 6kgs<package<80kgs



 Shipping from China to Switzerland, Norway and New Zealand (We cannot ship Stealth Bomber Ebike to this destination, but the DIY parts package for stealth bomber Ebike can be shipped to this three countries. The shipping rate and delivery are same to package which is over 30kgs
 Package

Shipping
Fee

Delivery
(Business
Days)

Import
Tax

package
(1-30kgs)

calculated
at checkout
7-10 yes, if you are asked to pay
package>30kgs,
normally the DIY
parts package for stealth bomber Ebike
calculated
at checkout
10-15 yes, if you are asked to pay







Returns & Warranty Policy

Free Your Shopping From Worries!

30-Day Money-Back Guarantee for Any Reason

Undamaged and unused product may be returned for a full refund for any reason within 30-days after receiving your items. Once the returned items arrives back in theebikemotorkit's warehouse for inspection, the refund process will be begin.

  • Returns must include all accessories;
  • Returned items must be in the same condition that you received it, unworn, unused, undamaged, and in its original packaging. You'll also need the receipt or proof of purchase;
  • For non-quality related return, the buyer is responsible for the return shipping cost;
  • For quality related return, theebikemotorkit will bear the return shipping cost;
  • We don't accept Used products return except it is the product problem or extremely product defects.

Warranty Claims for Quality-Related Issues

  • We have 1-year standard warranty for all batteries and motors(Including the batteries and motor in the Ebike). For controller, LCD or TFT display, it is 6-months warranty. The warranty does not cover the easy wore-out parts (for example throttle, brake lever, tire, cable, headlight, bicycle seat).
  • If you have a quality issue with the product, please contact us at sannykung@gmail.com to help diagnose the problem. If a product does not meet our high quality standard, we will issue you a replacement component or fix your original at no additional cost. Replacement components will only be sent after we have received your returned component or finished an inspection to determine the cause of the problems by product video.
  • Do-It-Yourself modifications, normal wear, and damaged due to gross negligence or abuse are not covered by the warranty.
  • For light color variation, it is not considered quality problem.

How to Return an Item

  • To start a return, you can contact us at sannykung@gmail.com. If your return is accepted and meet the free shipping return requirement, we’ll send you a return shipping label, as well as instructions on how and where to send your package.
  • For the return which the buyer need to pay the return shipping cost, please contact us by email to get the return address. Then let us know the tracking number after you ship the items.
  • Your items must be in the original packaging. Or the refund and replacement would not be issued.  Items sent back to us without first requesting a return will not be accepted.

Return Shipping Cost

Please read carefully the condition below to see who need to pay the return shipping cost. If the conditions are not met for return or warranty, theebikemotorkit reserves the right to the exchange or refund.

Warranty Period

Product Condition

Return

Exchange

Shipping Fee

<30 Days

(Unopened and Unused) Brand New

×

borne by the customer

(Opened and Unused) Non-Defective Product

×

borne by the customer

(Opened and Used) Defective Product

(provide product video)

×

borne by the seller

>30 Days

Non-Defective Product

×

×

/

3 Months

Defective Product (provide product video)

×

borne by the seller

6 Months

Defective Product (provide product video)

×

borne by the seller

12 Months

Defective Product (provide product video) This does not apply to Controller and LCD, TFT display

×

borne by the seller




Please note: To avoid malicious returns and save our labor costs and time. If the customer claimed the product defective and request return. Please provide product videos to us. At the same time, we will detect the cause of the failure after the product is returned to the warehouse. If it is man-made damage or return caused by improper use. We will charge consumers a return fee of 10%~20%, and the return shipping fee is borne by the consumer.

Refund

  • Please send us a notification after you ship the item out and provide a tracking number. After we receive the item you returned and check out that the item is in good condition, we will replace or refund you. This will be issued in 5-7 business days.
  • If you haven’t received a refund yet, first check your bank account again.Then contact your credit card company, it may take some time before your refund is officially posted. Next, contact your bank. There is often some processing time before a refund is posted. If you’ve done all of this and you still have not received your refund, please contact us at sannykung@gmail.com.
E-bike Battery Size Chart



About Us

1, Our battery factory is a professional lithium Ion manufacturer, all of our batteries new from factory directly or within 3 month oversea stock (US, UK, DE, FR).

2, Certifications: All of our batteries have UL, ROHS, MSDS, UN38.3 safety certifications

3, Safety Tests: Short Circuit Safety Test √ Overcharge SafetyTest√ Crush Safety Test Needing Safety Test √ Extrucsion Safety Test√

4, Warranty:  One year quality warranty and lifetime technical support. We has been in long-term cooperation with  Samsung, LG, Sanyo, All new UPP batteries enjoy a 1-year warranty. We have technical team based in US offers the best customer support if you have requirements for other different modes and capacities, please contact us and we can customize item for you.

5, Note before order: Our battery can fit most motor kits , but exclude these four : Bosch,SHIMANO, Yamaha,Panasonic .



48V13AH, 36v24.5AH, 48v17.5AH & 52V17AH  Battery Size

48V19.2AH Battery Size


48V24AH LG4800, 52V24AH, 48v25AH Samsung 50E, 52V25AH Samsung 50E & 60v19.2AH LG4800 Battery Size


Packing list

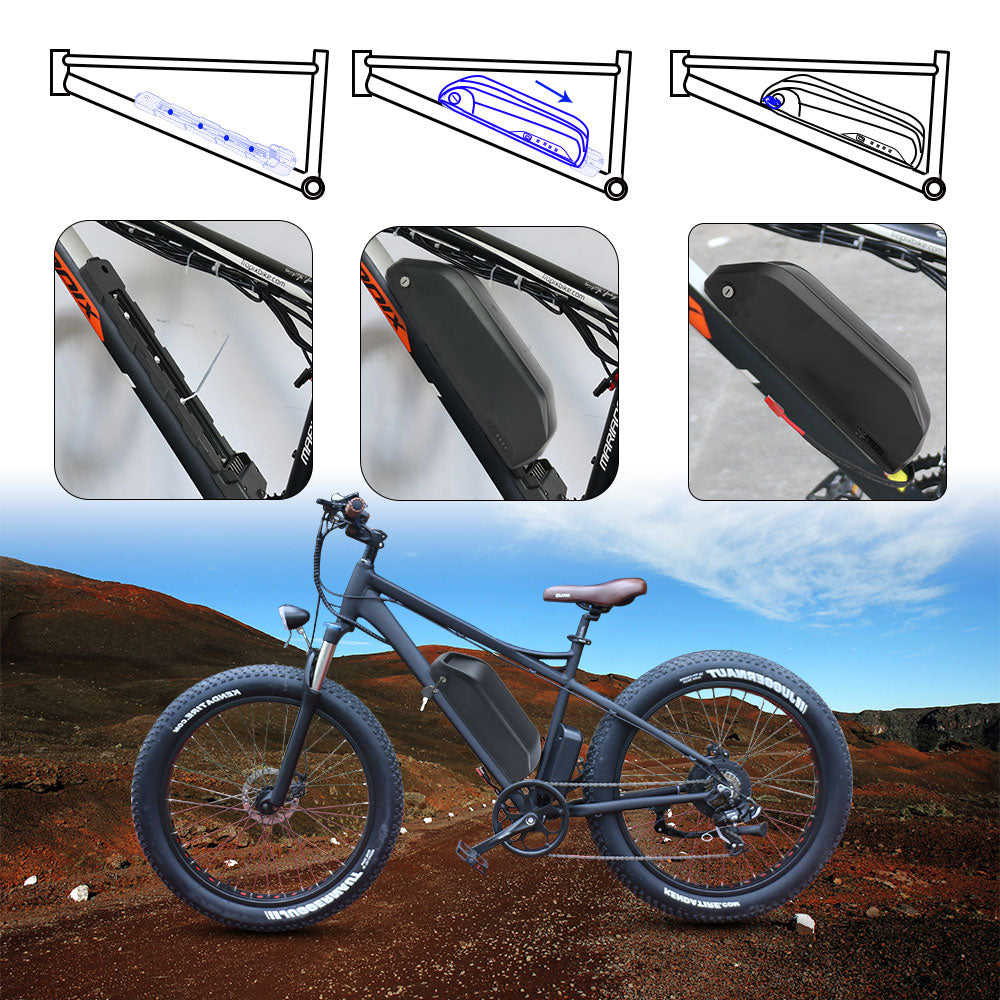

Installation

View full details

Ebike or Ebike Kit Can Work With
